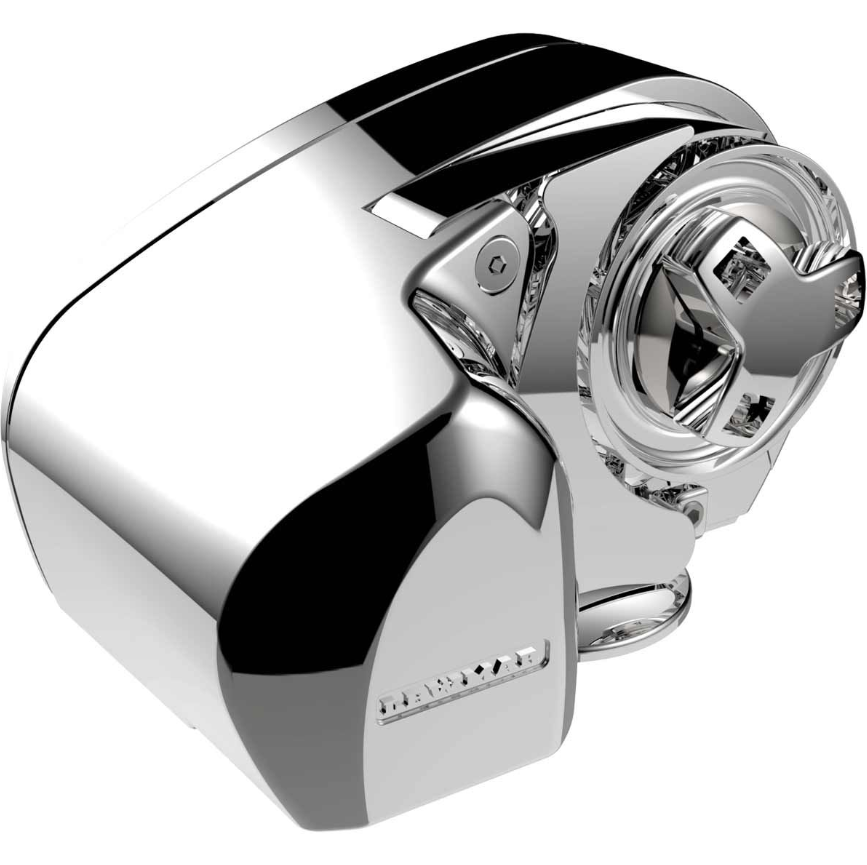

Lewmar Pro Series 1000 Windlass Kit 12v

Lewmar Pro Series 1000 Windlass 12v

Lewmar Horizontal Pro-Series Windlass has been praised by professionals worldwide. The Horizontal Pro-Series is a prime example of Lewmar's commitment to providing quality products. This windlass is DIY-ready, easy to install, and housed in 100% 316 stainless steel, with stainless steel control arm and stripper, ensuring it is well-protected and durable. With push-button control and a built-in manual emergency recovery system, anchoring has never been easier.

The Rope/Chain gypsy will accept 8mm DIN766 chain and 14-16mm 3-strand rope.

For safe use in an emergency, the windlass also features a built-in manual recovery system, all you need is a common 1/2 socket wrench.

Designed for easy installation (above-deck installation makes setup straightforward) it is supplied as a complete kit containing windlass, gasket, fixing studs, spanner/clutch lever, toggle switch & circuit breaker.

• Motor: 12V, 700W - provides fast line speed for efficient anchoring

• Chain Size: 8mm (5/16")
• Typical Max Pull: 454kg, (1000 lb)
• Max Line Speed: 32m/min
• Normal Line Speed: 27m/min
• Working Load: 113kg
• Normal Current Draw: 50A
• Circuit Breaker (Slow Blow): 70A
• Size: L245 x W178 x H146mm
• Suitable for boats from 6m to 11.5m, (20-38ft)

Upgrade your anchoring system with the Lewmar Horizontal Pro-Series Windlass and experience the perfect blend of power, durability, and ease of use.
