Sealine SC29 RCB

SEALINE SC29 RCB

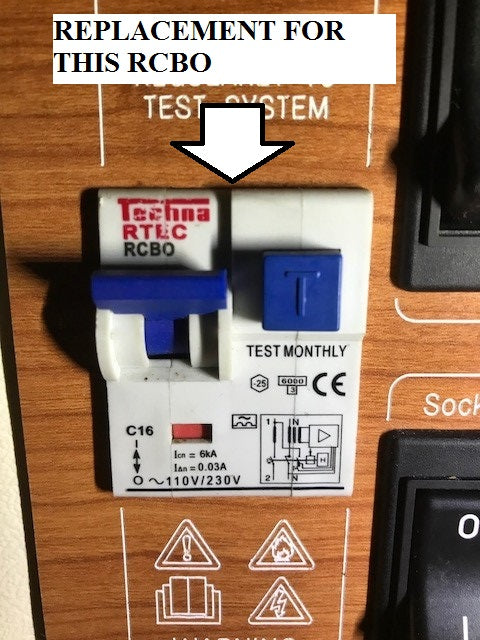

Replacement for Techna RTEC RCBO as fitted to Sealine SC29 panel

Residual current circuit breaker (main 240v incoming circuit breaker on panel, as used on Sealine SC29

RTECX3-2C16-030 RCBO

The RtecX3 range provides combined residual current (earth leakage) protection and overload/short circuit protection in a single device and can be used to replace an RCCB/MCB combination

The RtecX3 is a Type A RCBO and as such features dual pole switching (live and neutral disconnect) and provides protection against pulsating DC current leakage

The RtecX3 range is also available in a LV version designed to be used on 110V systems

Inbuilt test button operates at rated voltage

Number of Poles 2

Rated Voltage (Un) 2 Pole: 110 or 230 Vac

Rated Current 16A

Rated Short Circuit Capacity (Inc) 10kA

Replacement for Techna RTEC RCBO as fitted to Sealine SC29 panel

Original Sealine OEM supplied product
