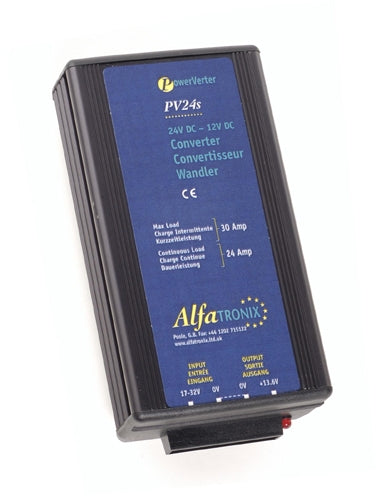

24 to 12v 30A Voltage Dropper

30A Voltage Dropper 24V-12V

• 24V-12V TRANSFORMER DC
• Load Current Continuous / Intermittent 24/30A Non-Isolated Common Negative
• Input voltage range 17-32Vdc
• Output voltage 13.6Vdc +15% -20% at extremes of temperature, load, input tolerance, etc
• Intermittent output power As stated, taken for a maximum of 2 minutes followed by 8 minutes rest
• Transient voltage protection Meets ISO7637-2 International standard for 24Vdc commercial vehicles
• Electrostatic voltage protection Meets ISO10605, ISO14892, >8kV contact, 15kV discharge
• Output noise <50mV pk-pk (100mV on 24V units) at continuous load. Meets CISPR25 and VDE0879-3
• Off load current (quiescent current) <15mA
• Power conversion efficiency Typically: 90% for non-isolated units, 85% for isolated units
• Isolation >400Vrms between input, output and case, on isolated products only
• Mean time between failures >162 years (HRD4)
• Operating temperature -25ºC to +30ºC to meet this specification table +30ºC to +80ºC de rate linearly to 0A
• Storage temperature -25ºC to +100ºC
• Operating humidity 95% max., non-condensing
• Casework Anodised aluminium, glass filled polycarbonate, dust water and impact resistance to IP533
• Connections Four 6.3mm push-on flat blade connectors
• Output indicator Green LED adjacent to output terminals
• Mounting method ‘Click ‘n’ fit mounting clip, fitted separately using three hole fixing
• Safe area protection: Over current Limited by current sensing circuit
• Over heat Limited by temperature sensing circuit
• Transients Protected by filters and rugged component selection
• Catastrophic failure Protected by internal input and output fuses
• Approvals 2004/108/EC The general EMC directive
• 2006/96/EC The automotive directive 93/68/EEC The CE marking directive
• Markings CE and e marked

Original Sealine OEM supplied product
