3 TONE SIREN

3 TONE SIREN

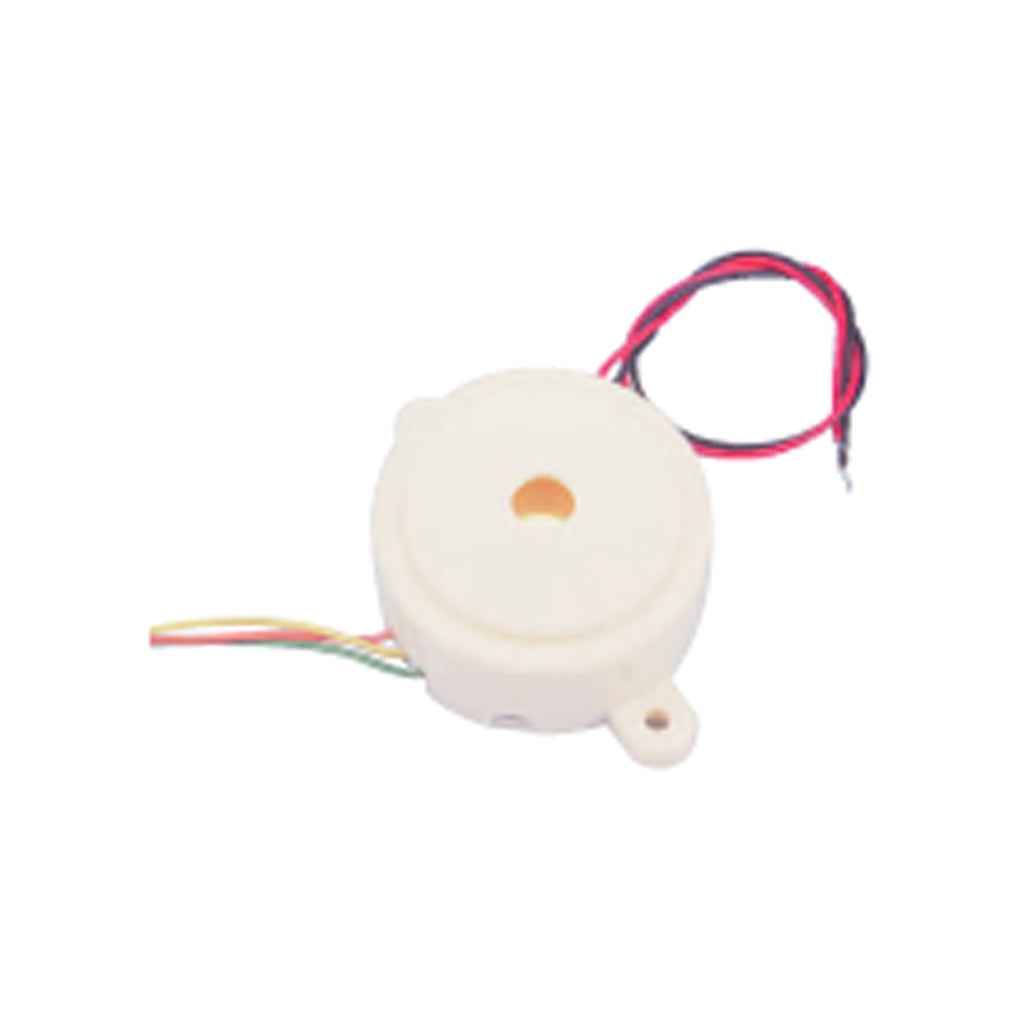

3 Tone Piezo Buzzer

A loud and compact buzzer

Operates from 6 to 12 V dc

The three non-DC leads determine the sound that the buzzer will produce

Green and yellow wires = two-tone siren

Green and orange wires = pulsed tone

All wires left unconnected = continuous tone

Two lugs with 3mm holes are provided for mounting purposes

Specifications: Supply voltage range: 6 to 15Vdc

Current at 12V: 95mA

Sound output (at 12V): 100dB@1m(with 12V supply)

Overall frequency: 2.8kHz

Operating temperature: -20°C to +70°C

Overall dimensions: 39mm dia. X 22mm height

Mounting lugs: 55mm tip to tip; 3mm holes

Lead length: power (red, black): 150mm (approx)

tone select (org, grn, yel): 60mm (approx)
