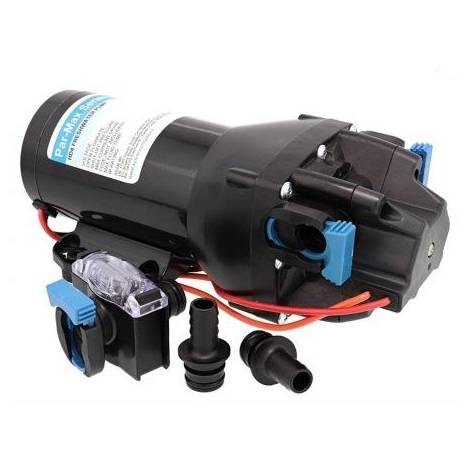

Jabsco Par-Max HDV 12V Fresh Water Pump

The Jabsco Xylem Par-Max HD4 12V DC freshwater delivery pump features a wide diameter motor (compared to non-HD models) with a powder-coated shell, cast aluminium end bells and lower housing to improve pressure capability and life.

The pump delivers exceptional performance and has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve four or more outlets.

Pump features include vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. The pump is supplied with two 1/2" quick connect straight hose barb fittings and a quick connect inline 40 mesh strainer.

• Voltage: 12V DC
• Open flow: 4 GPM (15 LPM)
• Cut in pressure: 20 PSI
• Shut-off pressure: 40 PSI (2.8 BAR)
• Max. current: 10.0 Amps
• Recommended fuse size: 15A
• Port fittings: 2x 1/2" Straight Hose barb

• Supplied with: Inline strainer (40 mesh) & quick connect fittings

Non-stocked, this may be subject to a lead time.

Replacement Solution for Flojet Quad 12V Fresh Water Pump.
