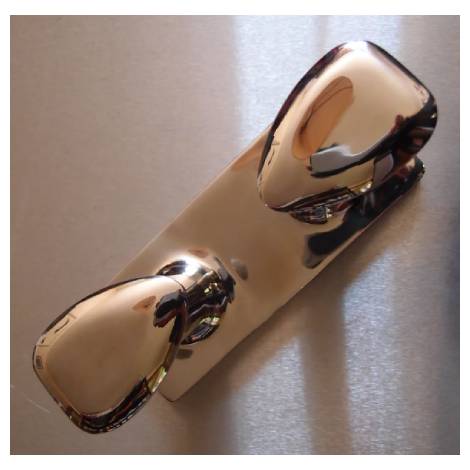

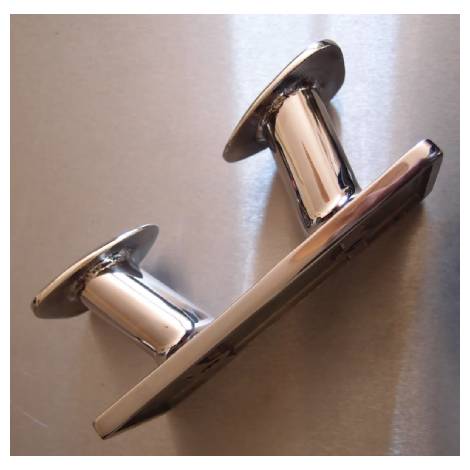

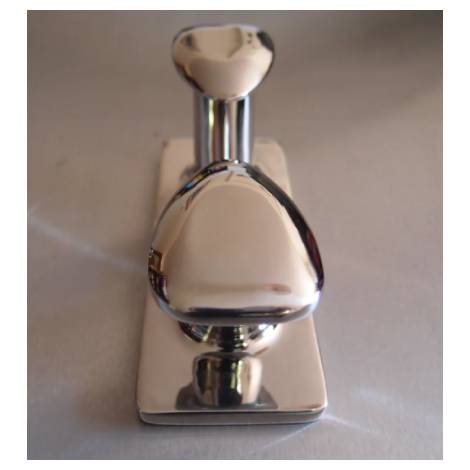

Horn Bollard Cleat Stainless Steel (Different Sizes)

• A4-AISI 316 marine grade stainless steel horn mooring bollard cleats with a highly polished finish.
• These include two metric threaded holes in the base plate for easy attachment (fixings not included).
• Highly corrosion resistant.


Available sizes (mm):

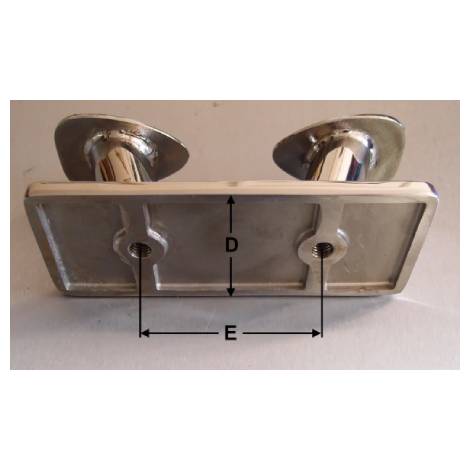

1. Length: 160, A: 149, B: 160, C: 65, D: 60, E: 70, F: 48, G: 8, Thread Diameter: M10.
2. Length: 220, A: 200, B: 230, C: 85, D: 70, E: 102, F: 65, G: 10, Thread Diameter: M10.
3. Length: 280, A: 257, B: 280, C: 100, D: 81, E: 131, F: 78, G: 11, Thread Diameter: M16.
4. Length, 300, A: 255, B: 300, C: 100, D: 80, E: 131, F: 80, G: -, Thread Diameter: M12.
5. Length, 340, A: 310, B: 345, C: 115, D: 90, E: 168, F: 90, G: 12.5, Thread Diameter: M18.

Please note you may need to re-drill mounting holes.

Current lead time approx 2 weeks.
