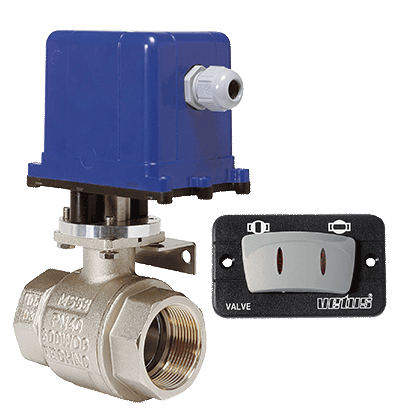

ELVAL 1 1/2" 24V ELECTRIC CONTROLLED BALL VALVE

ELVAL 1 1/2" 24V ELECTRIC CONTROLLED BALL VALVE

There is no need to compromise the safety of your boat

By fitting these VETUS ball valves with remote control, all seacocks may now be closed or opened electrically from a single central position

The electric control units G 11/2 can be easily unbolted from the relevant ball valve

This also facilitates the installation of the ball valve and allows the valve to opened or closed by hand in an emergency

The valves can be powered fully open or fully closed in approximately 12-15 seconds and the rated power consumption is approximately 4-15 Watts

As standard, each electrically operated valve is supplied with a ball valve, a 24 Volt remote control unit and a switch panel

These ball valves are resistant against the influences of petrol and diesel fuels

Please consult the locally applicable directives for fitting into petrol or diesel fuel lines

The electric motor is ignition protected and complies with the directive of ISO 8846

The G-threading meets the requirements of ISO 228-1 and ISO 9093-1

24 Volt DC supply, with nickel plated brass ball valves G 11/2

The housing of the electric control is waterproof according to IP 65

Dimensions (without the ball valve):

110 x 74 x 80 mm (l x w x h)

The switch panel, shown here, is supplied as standard

The monitoring lights indicate the position of the ball valve (open or closed)

The dimensions of the panel are: 78 x 47 x 19 mm

Original Sealine OEM supplied product
