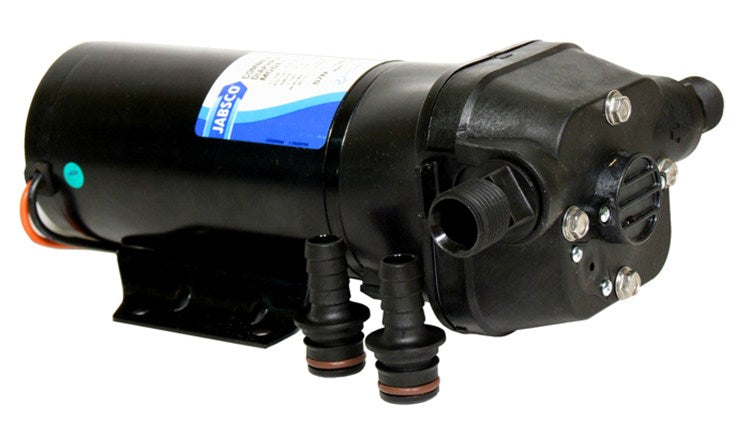

WATER PUMP PARMAX 3 DIAPHRAM 24V

WATER PUMP PARMAX 3 DIAPHRAM 24V

Industrial Diaphragm Pump 24 volt d.c

12 lpm pump, Santoprene diaphragm and Viton Valves

Connections: for 15mm (1/2") External thread & 15mm (1/2") ID hose

Dimensions: approx. 241mm long, 100mm wide, 94mm high

Fuse Size: 7.5A

Output: up to 12 litres/minute (3 gallons/minute)

Self priming up to 1.5m vertical lift (when dry)

Glass filled polypropylene body handles mildly aggressive chemicals

Can run dry without damage

Thermal Overload Protected Motor

Liquid temeratures from 7ºC to 54ºC

Viscosities upto 250cP

Continuous duty at 2.8 bar (40psi) head in 55ºC ambient temerature

Packaged Dimensions: L:35.00 x H:12.00 x W:18.00cm

Actual Weight: 3.19 Kg (Approx. 3.69 Kg packed)
