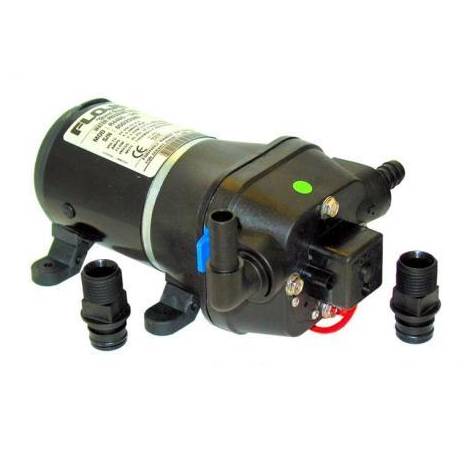

FRESH WATER PUMP FLOJET QUAD 12V

FRESH PUMP FLOJET QUAD 12V

Pressure-controlled pump with internal bypass 12 volt d.c.

Connections: - for 13mm (½") bore hose or Hep20 push-fit connectors CW193

Dimensions: - 208mm long, 160mm wide, 100mm high

Fuse Size: 10 amp

Output: 12.5 litres/minute (2.8 gallons/minute) open flow

PRESSURE SWITCH - cuts in at 1bar (15psi) - cuts out at 2.4bar (35psi)

Efficient, high-flow, self-priming pump serving 3 or more outlets

Multi-diaphragm design self primes to 1.5m vertical lift, can run dry without damage

Supplied with snap-in ports for hose or Hep20 connectors

Quiet running

Motor protected by automatic thermal overload cut-out

Built-in bypass valve eliminates the need for an accumulator tank.

Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm

Actual Weight: 2.13 Kg (Approx. 2.63 Kg packed)
