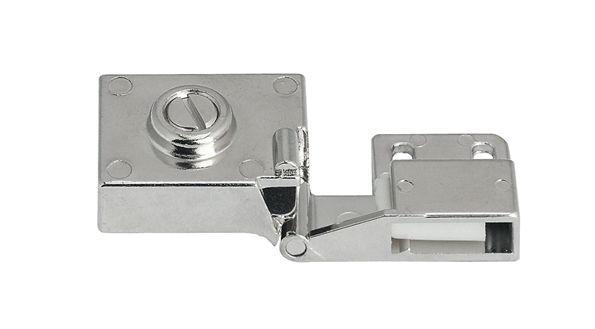

Sealine SC29 Bathroom Cupboard Hinge (Pair)

Sealine SC29 Bathroom Cupboard Hinge (Pair)

• Comprising: 2 hinges, (1 right hand, 1 left hand) 2 screws, 2 rubber pads

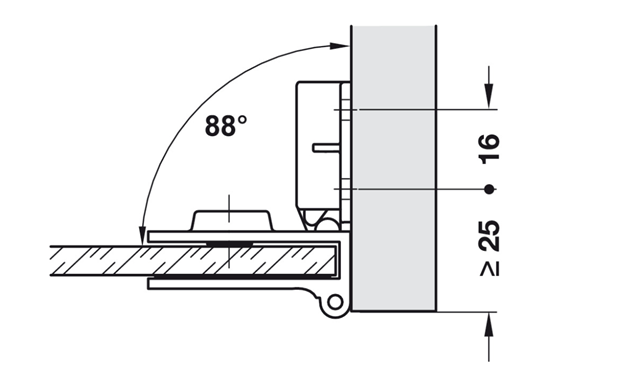

• Maximum opening angle 170°

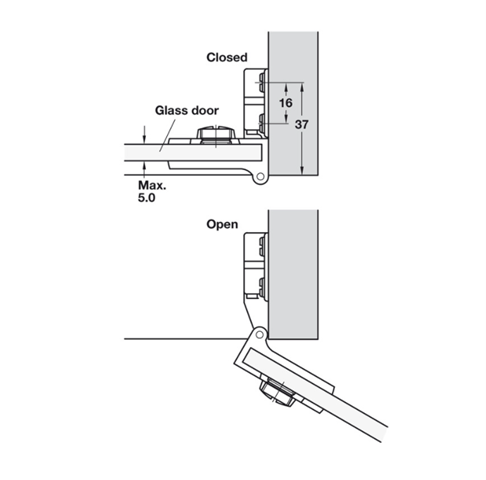

• For maximum glass thickness 5mm
• For inset doors
• With catch
• Zinc die cast
• Door size max: 1000mm x 600mm
• With self-closing feature
• A reveal of 2.2mm is required at the top and bottom, as well as 2 or 3mm at the sides
• The hinge is secured to the glass door by a clamping screw making it unnecessary to drill into the glass
