20AMP BREAKER 3120-F511-P7T1-W01DT-20A

20AMP BREAKER

3120-F511-P7T1-W01DT-20A

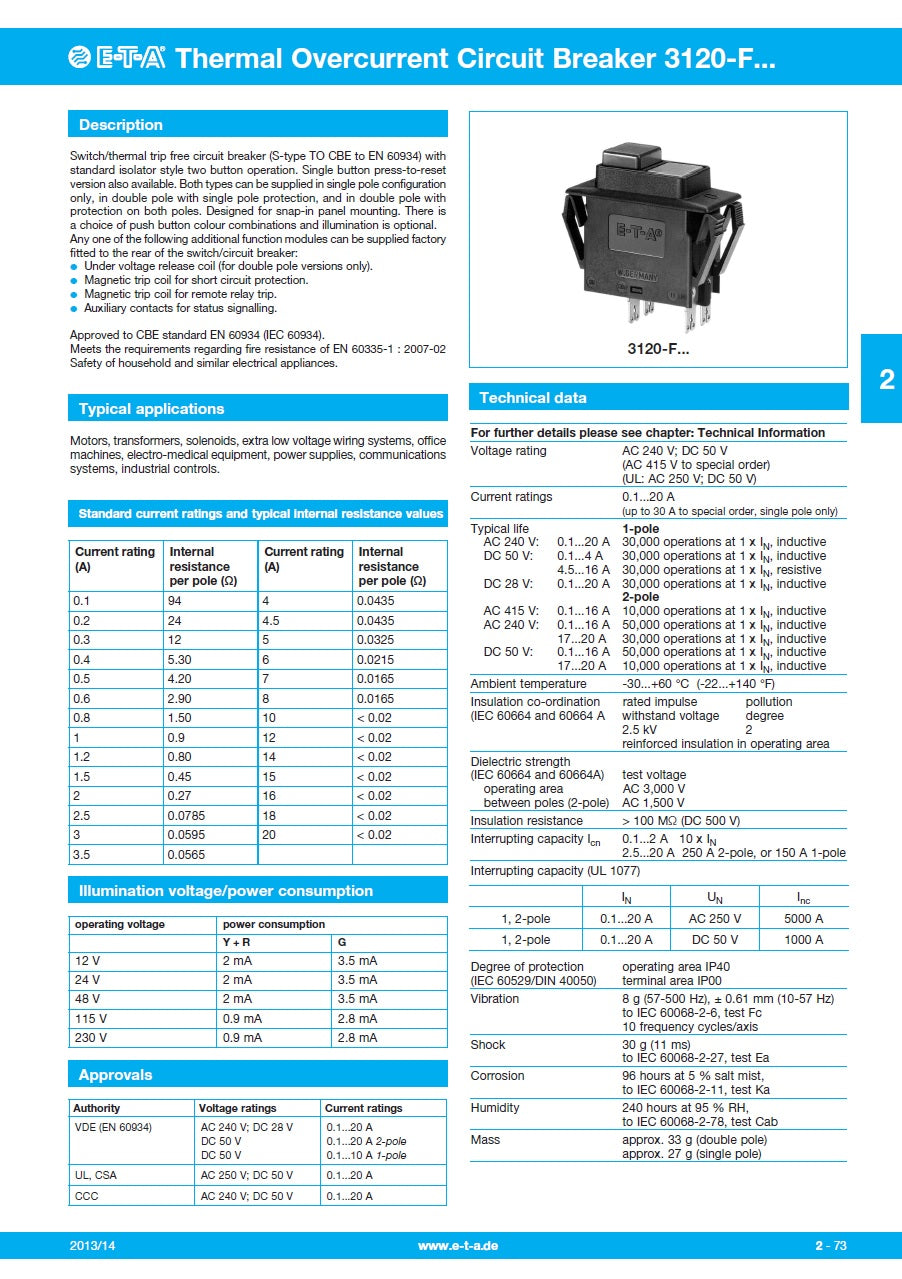

Switch/thermal trip free circuit breaker (S-type TO CBE to EN 60934) with standard isolator style two button operation

Single button press-to-reset version also available

Both types can be supplied in single pole configuration only, in double pole with single pole protection, and in double pole with protection on both poles

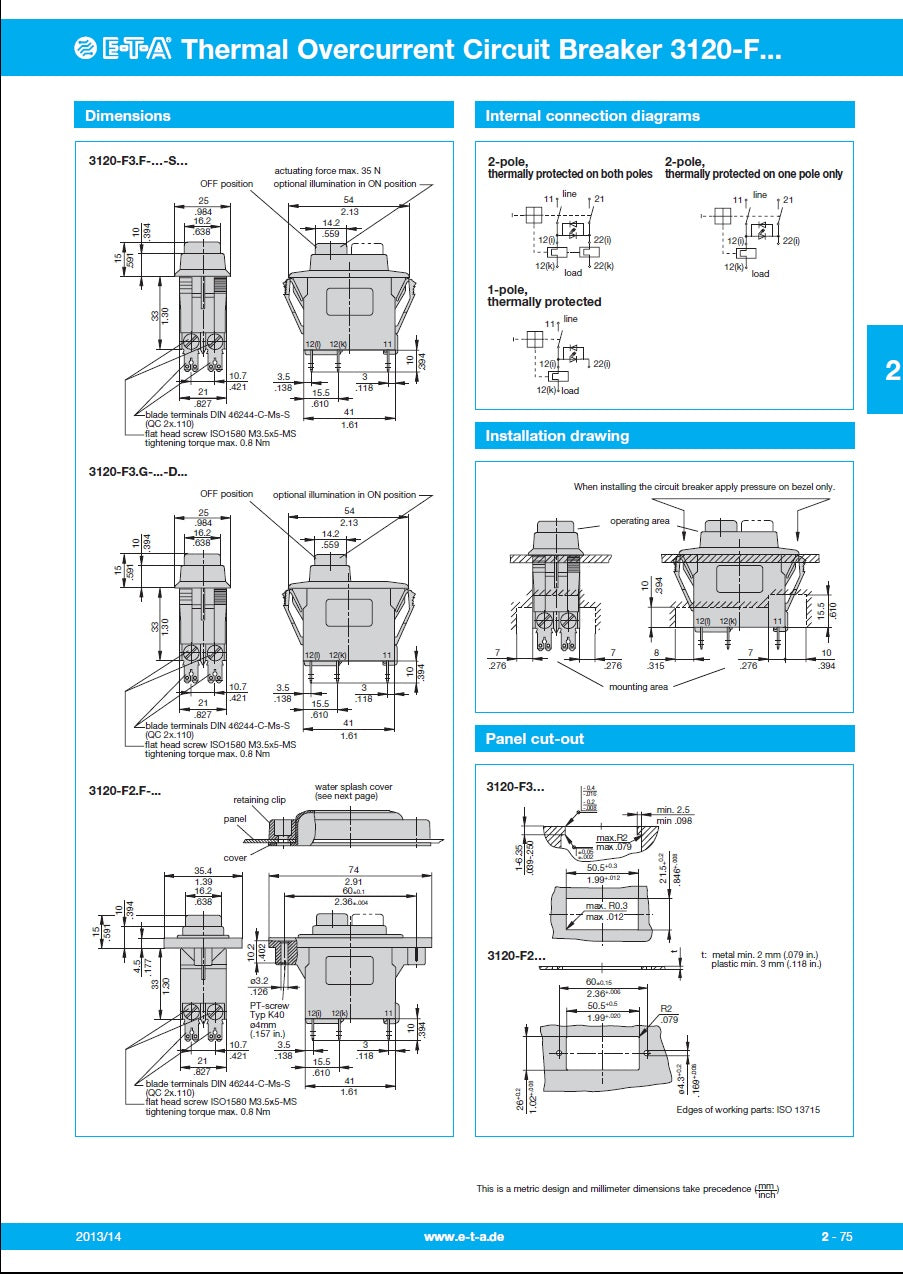

Designed for snap-in panel mounting

There is a choice of push button colour combinations and illumination is optional

Any one of the following additional function modules can be supplied factory fitted to the rear of the switch/circuit breaker:

Under voltage release coil (for double pole versions only)

Magnetic trip coil for short circuit protection

Magnetic trip coil for remote relay trip

Auxiliary contacts for status signalling

Approved to CBE standard EN 60934 (IEC 60934)

Meets the requirements regarding fire resistance of EN 60335-1 : 2007-02 Safety of household and similar electrical appliances

ETA product
