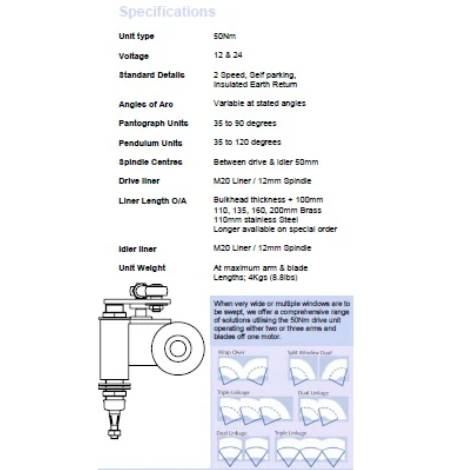

Sealine SC35 Wiper Motor 12V 90 Degree

• 50Nm
• 2 speed
• Self parking
• Set to 90 degree arc
• Insulated earth return
• Angles of arc - variable
• Heavy duty window wipers
• A very powerful unit for its size, adaptable for high speed vessels, workboats and leisure craft, where compact design and outstanding performance is paramount
• Supplied as a variable arc model for 12 volt DC
• The standard motor has two speeds and self parking facility
• Insulated earth return and EMC filter are standard
• Pantograph and Pendulum arm with blades up to 1000mm (39 inches) are available separately
• Pantograph Units 35º, 40º, 45º, 50º, 55º, 60º, 70º, 80º, 90º
• Pendulum Units 35º, 40º, 45º, 50º, 55º, 60º, 70º, 80º, 90º, 100º, 110º, 120º
• Spindle Centres Between Drive Liner & Idler =50mm - Pantograph Units only Drive Liner M20 - Brass Liner/12mm SS Spindle - Pantograph & Pendulum Units
• Liner Overall Length Bulkhead Thickness + 120mm - Liners over 125mm are available at extra cost
• Idler Liner M20 - Brass Liner /12mm SS Spindle - Pantograph Units only
• Bracket C - Compact Bracket
• Unit Weight Allowing for the maximum arm and blade lengths; 4Kgs (8.8 lbs)

As fitted to Sealine SC35. Available as Port or Starboard wiper motor.

Non stocked item, current lead time 10 - 12 weeks

Original Sealine OEM supplied product.
