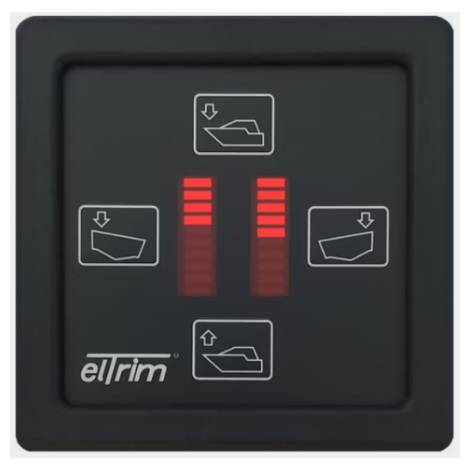

Eltrim Trim Tab Standard Controller 12V

• ST standard control unit (single station) with position indicator 12V.
• Operating of tabs in manual.
• Top push-button-moves both trim tabs down so the bow moves down.
• The lower button will raise both trim tabs, so the bow moves up.
• Right button: starboard sides moves down.
• Left button: port side moves down.
• Position of trim tabs are shown by LED-lights.
• Small and compact.
• Size of control unit is 90 x 90mm.
• Hole for mounting in instrument panel 75 x 75mm.

• Depth 60mm.
• Maximum current draw: 2 amps.
• Available colours: Black (in stock) or Grey (made to order).

If you are replacing the older style LED or VU 120mm controller you will require Eltrim Adaptor Plate.

As fitted to Sealine S series.

Original Sealine OEM supplied product. BritBoatParts are official suppliers of all Eltrim products in the UK.
