Water Housing Inlet Straight Coupling Chrome

Water Housing Inlet Straight Coupling Chrome

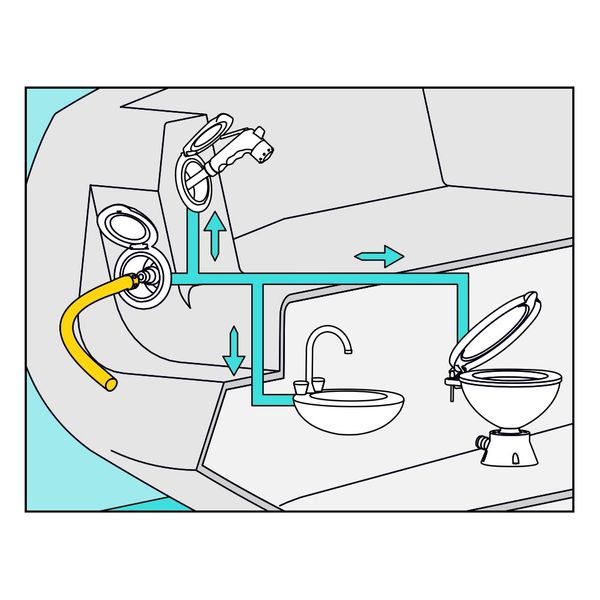

This freshwater inlet unit from the Plastimo EZ Water range is used to connect the on-board water installation to the pontoon water supply. This enables the user to take a shower or cook at the pontoon, without using the water from the tanks (not suitable for filling the water tanks). This inlet has a straight connector, white housing and a round chrome cover.

Product contents:

• ABS flush mount housing with splashproof ASA cover

• A pressure regulator which accepts up to 7.5 bar (108 PSI) shore supply and delivers a 3 bar* (43 PSI) working pressure (compatible with most appliances and equipment on board)

• A non-return valve

• A male quick-coupling fitting for garden hose connection

• Male 3/4'' threaded connector to the boat's water system

*adjustable 1 to 4 bar (15 to 60 PSI)

Mounting:

Drill a Ø70mm hole. Position the housing. Ensure the housing is sealed with a silicone seal. Fix the box using the screws supplied (Torx T10) to the tightening torque of 5 Nm. Connect the water inlet pipes and the outlet pipe to the spray head (see diagram on PDF download). Tighten moderately and check for leaks.

Use: Turn the mixer tap to adjust the water flow. Rotate it left or right to adjust the temperature.

Maintenance: Does not require special maintenance. Do not use solvents.
