Water Housing Mixer Tap White

Water Housing Mixer Tap White

Plastimo

A mixer tap unit that allows the user to adjust the flow rate and water temperature of the deck shower. This model is made up of a chromed brass mixer tap within white flush mount housing with a splashproof round chrome cover.

Product contents:

1 x ABS-ASA housing with splashproof cover

2 x Stainless steel screws and fixing shims

1 x Stainless steel mixing valve

3 x 20cm braided stainless steel pipes

Connection to the water supply by G 3/8" thread

PLEASE NOTE: The image shows a chrome cover, this inlet has a white cover similar to that in the second image.

Mounting:

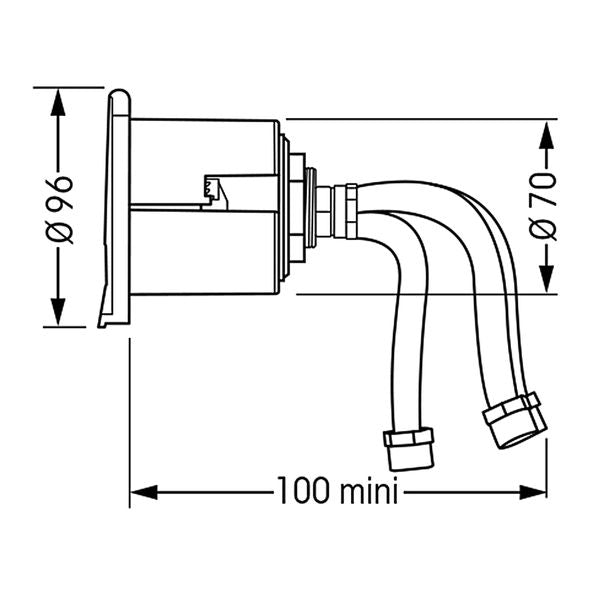

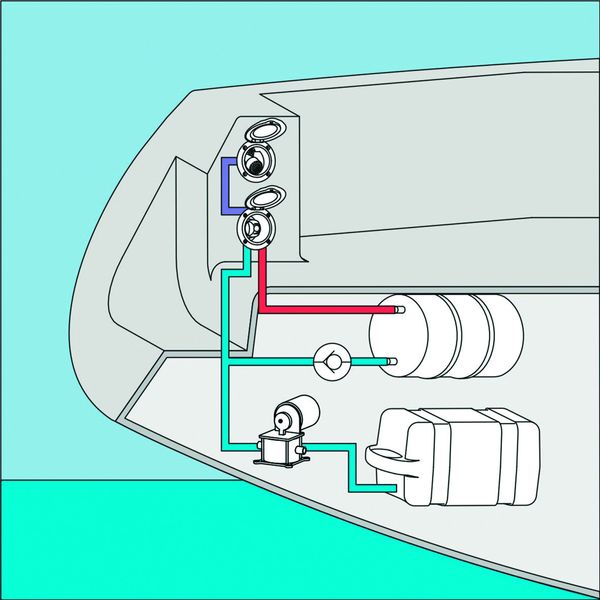

Drill a Ø70mm hole. Position the housing. Ensure the housing is sealed with a silicone seal. Fix the box using the screws supplied (Torx T10) to the tightening torque of 5Nm. Connect the water inlet pipes and the outlet pipe to the spray head (see diagram on PDF download). Tighten moderately and check for leaks.

Maintenance: Does not require special maintenance. Do not use solvents.
