Water Housing Outlet Elbow Coupling Chrome

Water Housing Outlet Elbow Coupling Chrome

Plastimo

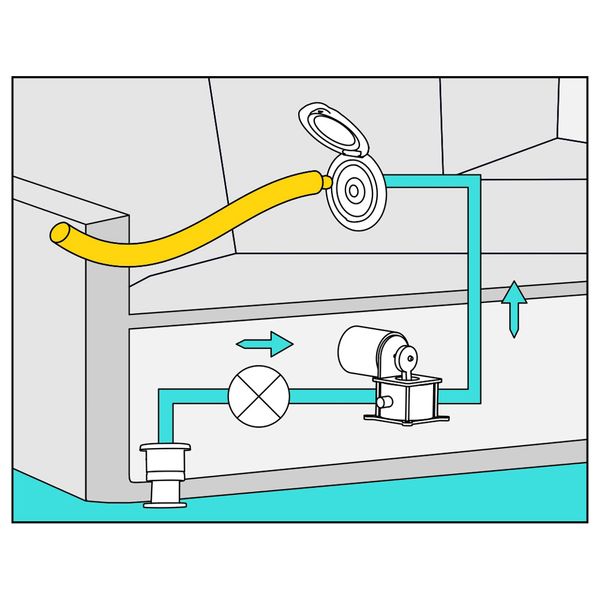

This fresh/seawater outlet unit is designed to be used in conjunction with a pump and a thru-hull fitting to produce pressure water on the deck. This outlet unit is made up of white housing with a round chromed cover and an elbow connector.

Product contents:

• A splashproof ABS-ASA housing with splashproof cover

• 2 x Stainless steel screws and fixing wedges

• A locking flange

• Male 3/4'' threaded connector to the boat's water system

Mounting:

Drill a Ø70mm hole. Position the housing. Connect to the water circuit downstream from the main water group. Check the installation to make sure there are no leaks. Ensure the housing is sealed with a silicone seal. Secure the housing using the screws supplied (Torx T10) to the tightening

torque of 5 Nm.

Maintenance: Does not require any maintenance. Do not use solvents.
