Water Housing Outlet Straight Coupling White

Water Housing Outlet Straight Coupling White

Plastimo

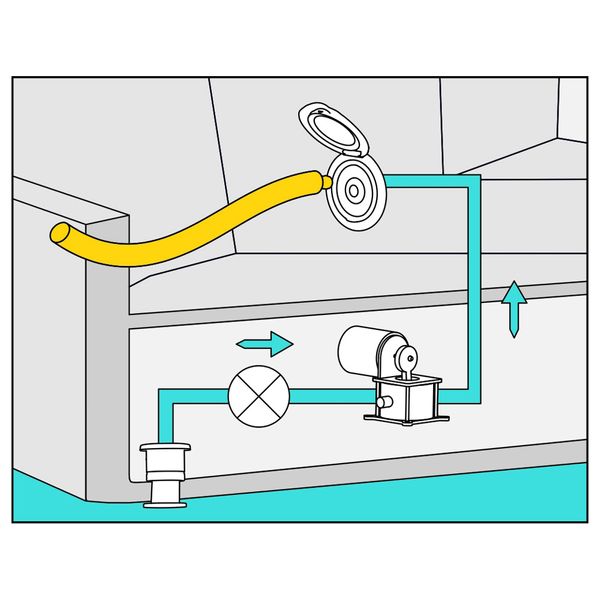

This fresh/seawater outlet unit is designed to be used in conjunction with a pump and a thru-hull fitting to produce pressure water on the deck. This outlet unit is made up of white housing with a chromed cover and a straight connector.

Product contents:

• A splashproof ABS-ASA housing with splashproof cover

• 2 x Stainless steel screws and fixing wedges

• A locking flange

• Male 3/4'' threaded connector to the boat's water system

PLEASE NOTE: The image shows a chrome cover, this inlet has a white cover similar to that in the second image.

Mounting:

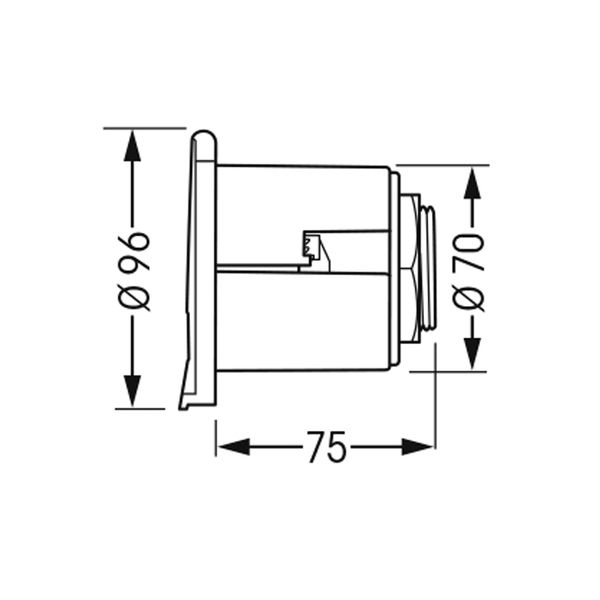

Drill a Ø70mm hole. Position the housing. Connect to the water circuit downstream from the main water group. Check the installation to make sure there are no leaks. Ensure the housing is sealed with a silicone seal. Secure the housing using the screws supplied (Torx T10) to the tightening

torque of 5 Nm.

Maintenance: Does not require any maintenance. Do not use solvents.
